Leonardo da Vinci's Ingenious Design for a Self-Supporting Bridge

列奥纳多·达芬奇对一座自立桥的巧妙设计

Or, "How to build a bridge in 10 minutes that's strong enough to support a car"

或者，“如何在10分钟内建造一座足以支撑汽车的桥梁”

By

通过

Rain Noe

野江雨

-

April 6, 2017

2017年4月6日，

in

在

Reference

参考

|

Lifestyle

生活方式

|

Architecture

架构

Of the many structures Leonardo da Vinci designed, perhaps none made more ingenious use of materials than his practical design for an easy-to-assemble, self-supporting bridge.

在列奥纳多·达芬奇设计的众多建筑中，也许没有一座比他设计的易于组装、自支撑的桥梁更巧妙地利用材料了。

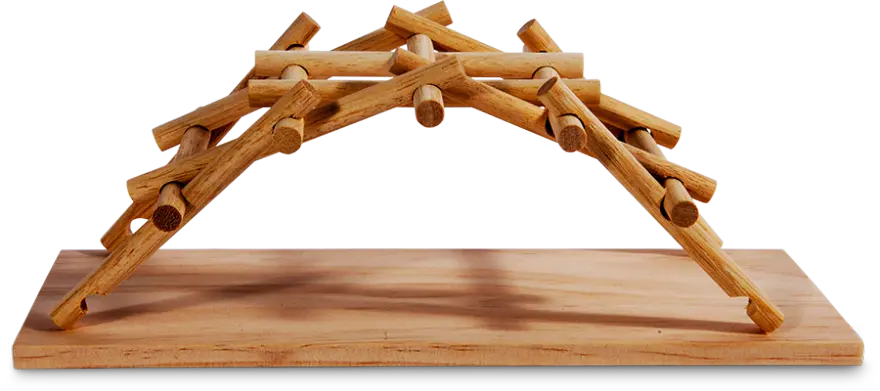

Enter a caption (optional)

Here's a father and son demonstrating its construction in their backyard, without using a single tool:

这是一个父亲和儿子在他们的后院演示它的建设，没有使用一个单一的工具：

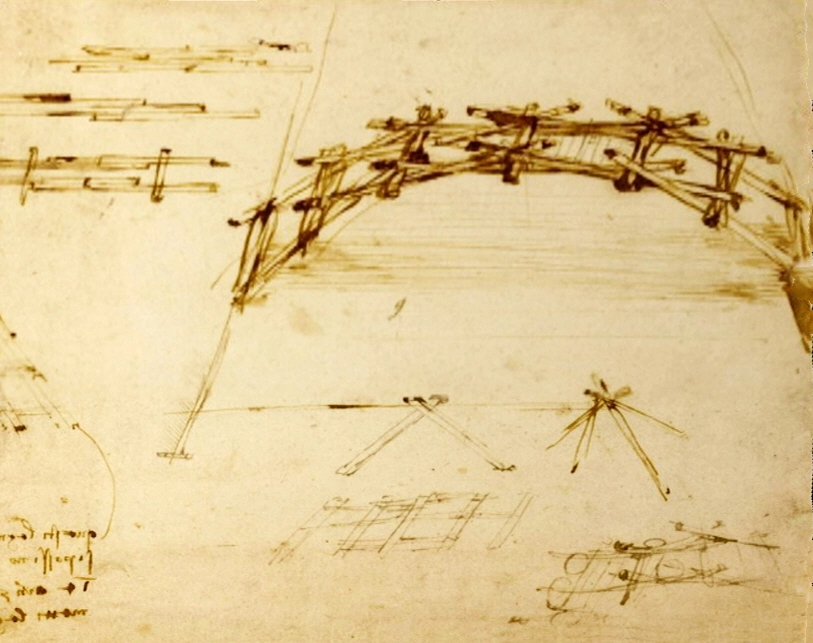

As you can see they've used no fasteners, since the structure is designed to support itself. But in da Vinci's original design, notches were meant to be cut into the timbers to add greater security to the structure.

正如你所看到的，他们没有使用任何紧固件，因为结构的设计是为了支持自己。但在芬奇最初的设计中，缺口是为了在木材上切割，以增加结构的安全性。

Enter a caption (optional)

Enter a caption (optional)

The design is not limited to just the five crossmembers depicted above. Here's one with nine crossmembers, erected as decoration in the German city of Freiburg.

该设计不仅限于上面描述的五个横梁。这是一个有九个横向成员，竖立在德国城市弗赖堡作为装饰。

Enter a caption (optional)

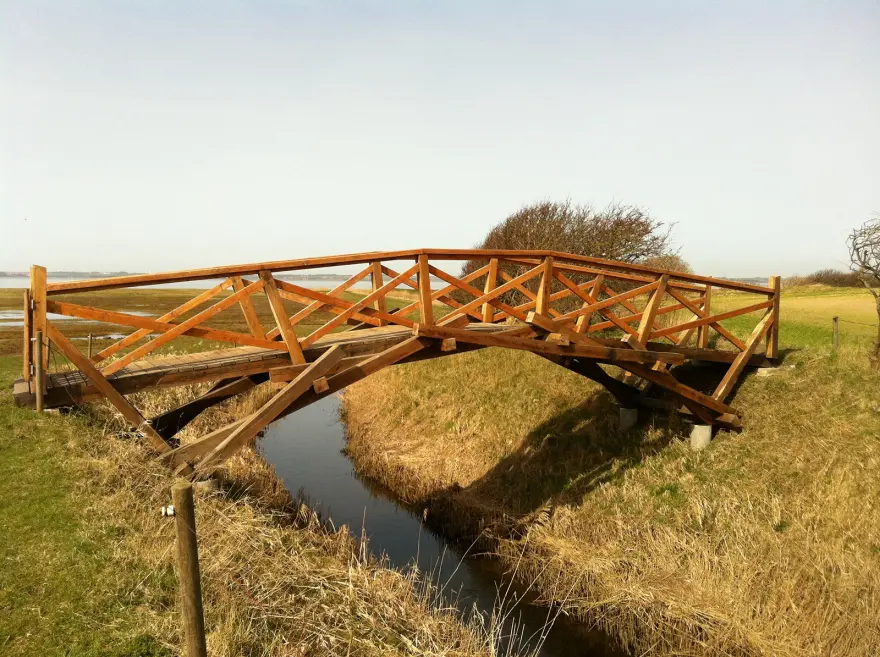

And as an example of this design in practical use, here's da Vinci's design serving as the support structure for this footbridge in Morsø in northern Denmark.

作为这种设计在实际应用中的一个例子，这是芬奇的设计，它是北方丹麦的摩尔人桥的支撑结构。

Enter a caption (optional)

You might be wondering how strong the design is. Well, here's a version erected out of construction lumber in Stuttgart, Germany, with the city's Mayor being driven across it:

你可能想知道这个设计有多强大。好吧，这是一个在德国斯图加特用建筑木材建造的版本，该市市长开车穿过它：

Enter a caption (optional)

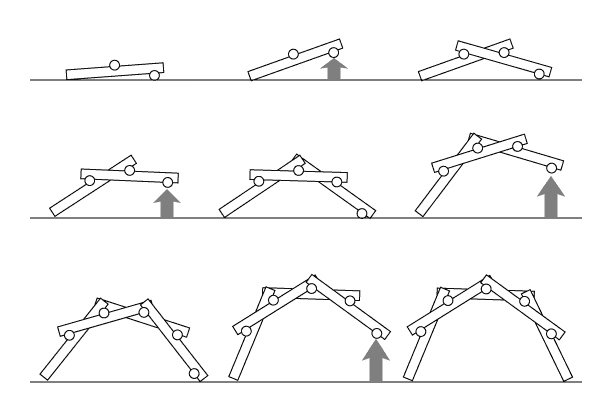

That was at an event last year celebrating traditional carpentry. (The folks you see wearing black hats and vests have donned traditional German builders' garb.) Incredibly, the 10-meter-span structure was assembled by eight apprentices and two masters in about ten minutes! Here's how they did it:

那是在去年庆祝传统木工的活动上。(The你看到的那些戴着黑帽子、穿着黑背心的人，都穿着传统的德国建筑工人的服装。）令人难以置信的是，这座10米跨度的建筑在十分钟左右的时间里，由八名学徒和两名大师组装而成！他们是这样做的：
